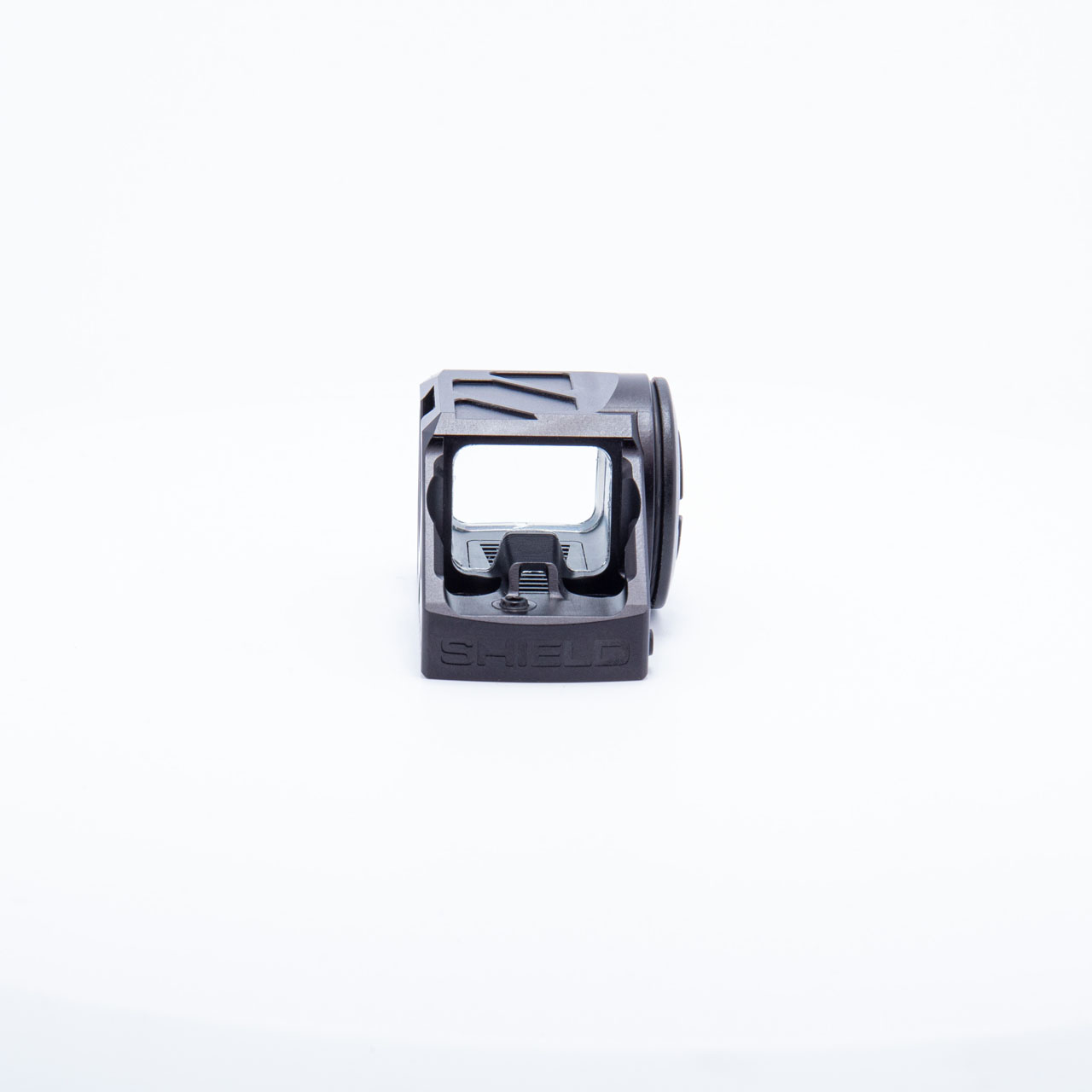

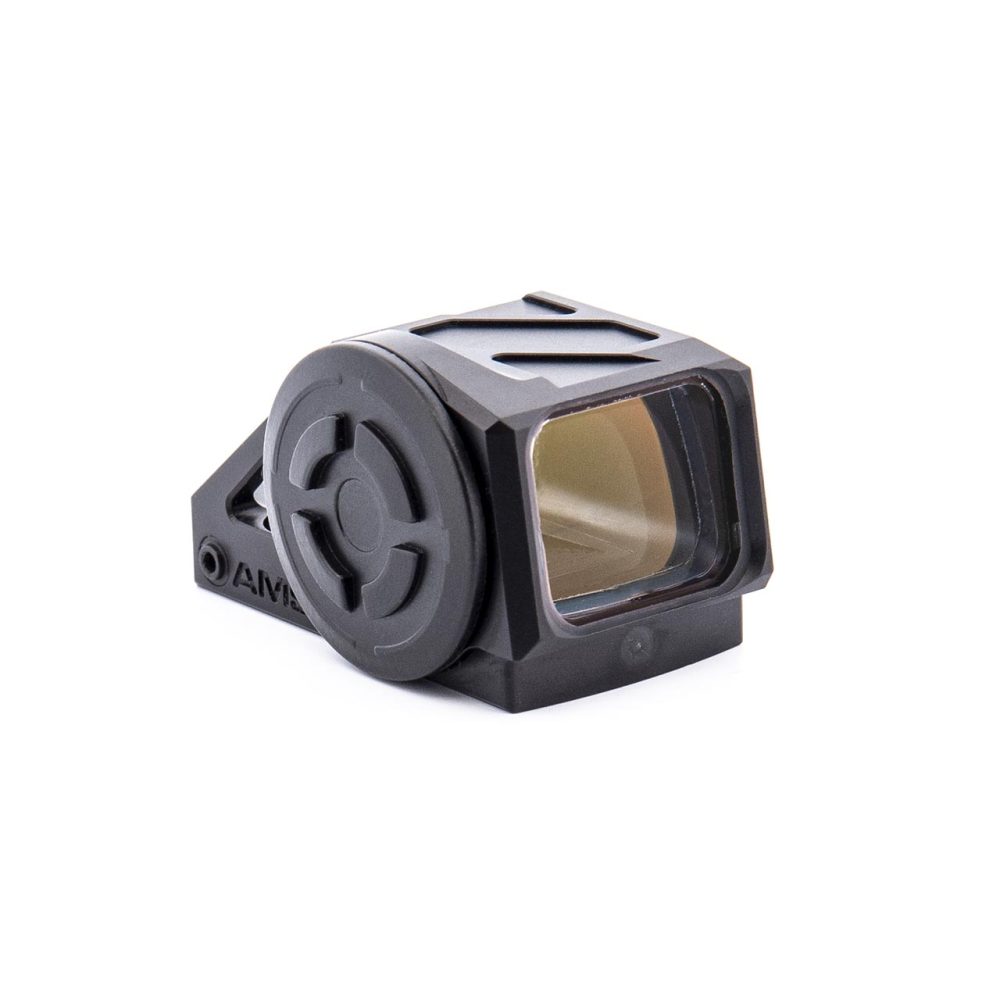

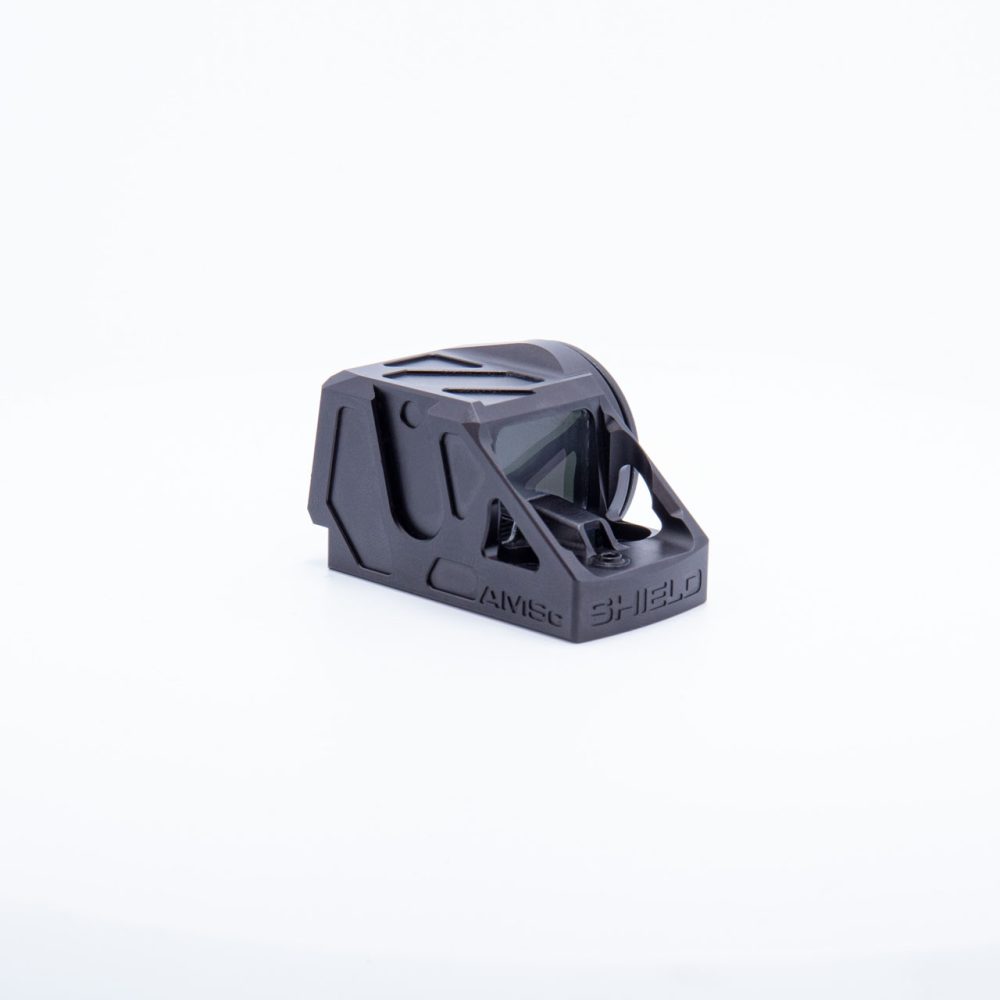

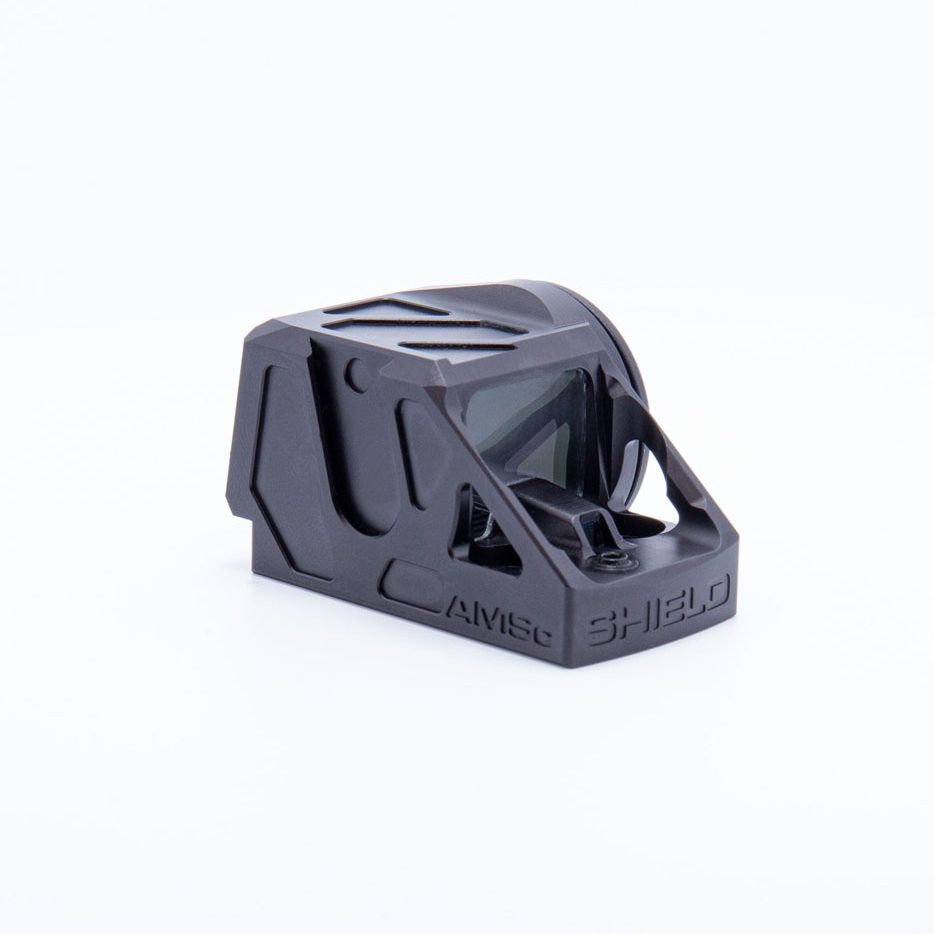

AMSc – 8MOA – Advanced Mini Sight Compact

$573.88 ex VAT

SKU: AMSc-4MOA Categories: , , Tags: , , , ,

Following the release of the AMS, comes the latest offering from SHIELD: the AMSc. Expanding the range of enclosed emitter products, the AMSc offers a host of features similar to its big brother but in a scaled-down package, aimed at narrow-frame or single-stack pistols for EDC and concealed carry requirements.

Utilizing our unique SHIELD footprint ensures forward and backward compatibility with existing firearm installations and accessories. A newly designed aerospace-grade billet aluminum body provides a host of features not normally found in a micro-compact product.
No-click adjustment allows for much more accurate zeroing with wider limits of elevation and windage. Multiple battery tray options allow for a choice of battery capacity to increase operational life or reduce the overall profile of the housing.
A nitrogen-sealed housing, submersible to 30 feet for 30 minutes, ensures all-weather capability with zero user interaction required.
Benefiting from multiple patents, the AMSc is still able to offer co-witnessing using our hollow bridge rear sight design and remains watertight while being one of the smallest and most attractive enclosed sights on the market.

Description

AMSc Sight 8MOA (6.5 MOA)

The patented design features include:

  • Mounts to SHIELD’s famous footprint.
  • Utilizes SHIELD’s patented mechanism, enabling co-witnessing with standard iron sights, considerably reducing training times and costs.
  • The mechanism uses no click adjustment, making it infinitely more accurate when zeroing.

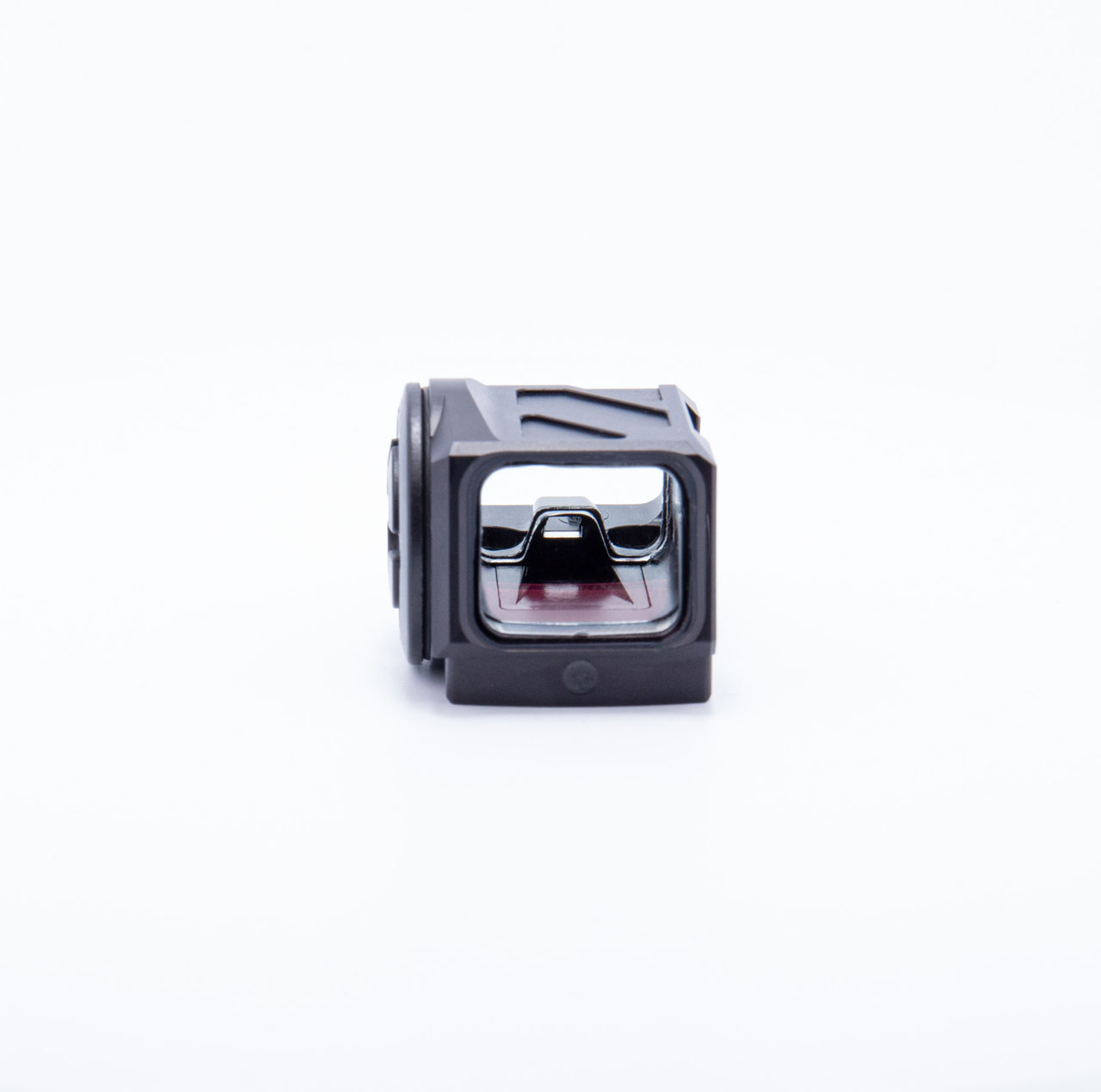

  • Square, crystal-clear glass lens with no filters to disturb the image of the world through the sight.
  • Machined from aerospace-grade aluminium to extremely precise tolerances while maintaining an attractive, modern-looking optic.
  • Smallest and lightest in its class, weighing only 27.1g (battery excluded).
  • Automatic brightness adjustment, so it can always be on and ready.
  • 20,000 hours in average daylight with a CR2032.

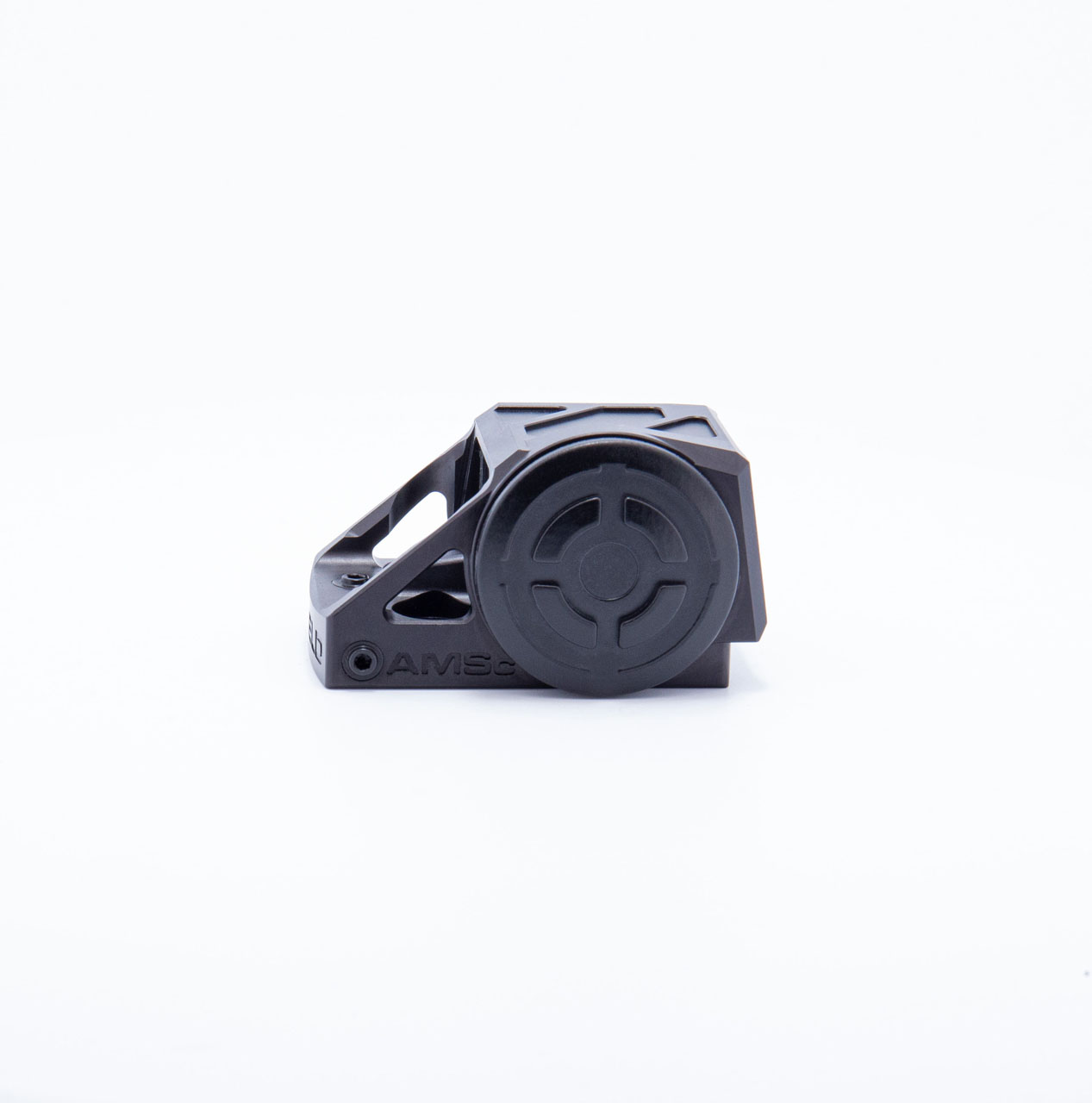

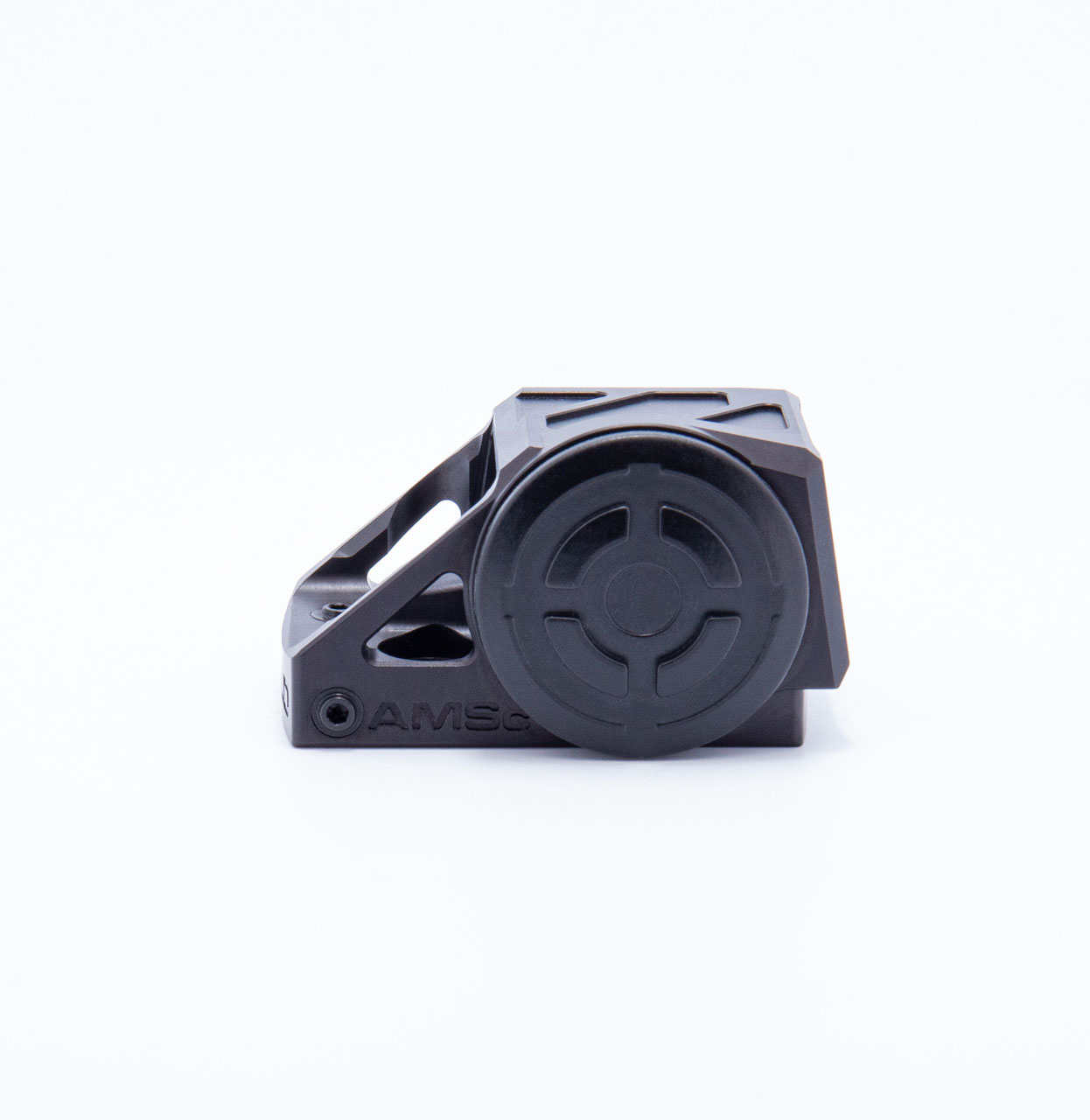

  • Side access battery compartment with the option of a CR2025, CR2032, or CR2050 battery, offering the user a choice of better battery life or increased concealability.
  • Nitrogen-sealed housing, submersible to 30 feet for 30 minutes.

Manual

    AMSc Instruction Manual – English

Technical Specification

Optical Characteristics

  • Light Source: Red light emitting diode (LED). No laser; completely eye safe. No radioactive materials.
  • Red Dot Size Options: 4MOA and 8MOA
  • Lens: Square, crystal-clear glass lens with no filters to disturb the image of the world through the sight.
  • Lens Coating: Anti-reflective, color-free coating minimizes visible signature.

Electronics

  • Battery: One 3V lithium metal battery, CR2025, 2032, or 2050. Multiple size battery caps for extra concealability or battery life.
  • Battery Life: 20,000 hours in average daylight with a CR2032.
  • Battery Fitting: Side mounting battery
  • Brightness Adjustment: Automatic.
  • Brightness Range:
    • Lowest: Compatible with Night Vision.
    • Highest: Visible against the sky in bright daylight.

Exterior

  • Housing Material: Anodized aerospace-grade aluminum (6082 T6).
  • Color: Matte black.
  • Dimensions:
    • Sight with 2025 battery and cap (L x W x H): 40.8 mm x 25 mm x 25.6 mm (1.65” x 0.98” x 1”).
    • Sight with 2032 battery and cap (L x W x H): 40.8 mm x 26 mm x 25.6 mm (1.65” x 1.2” x 1”).
    • Sight with 2050 battery and cap (L x W x H): 40.8 mm x 27.5 mm x 25.6 mm (1.65” x 1.8” x 1”).
  • Weight: 27.1 grams / 0.95 ounces (excluding battery).
  • Mount: The SHIELD footprint – 100+ mounting solutions.
  • Water Immersion: 30 feet for 30 minutes (IP68).

Accessories - What's in the Box

SHIELD AMSc Sight

  • 1 x Minidial with 1.5 Hex Wrench (for zeroing)
  • 1 x 2025, 2032 & 2050 Battery Cap Covers
  • 1 x Battery Cap Removal Tool
  • 1 x CR2032 Battery
  • 1 x AMSc Cover
  • 1 x 1° shim
  • 1 x 2.5 Hex Wrench for mounting screws
  • 2 x Button head M4x8mm screws
  • 2 x Button head M4x10mm screws
  • 4 x 0.5mm Nylon washers
  • 1 x Reece’s Law Battery Cover
  • 2 x Battery Sticker
  • 2 x Shield Target Sticker
